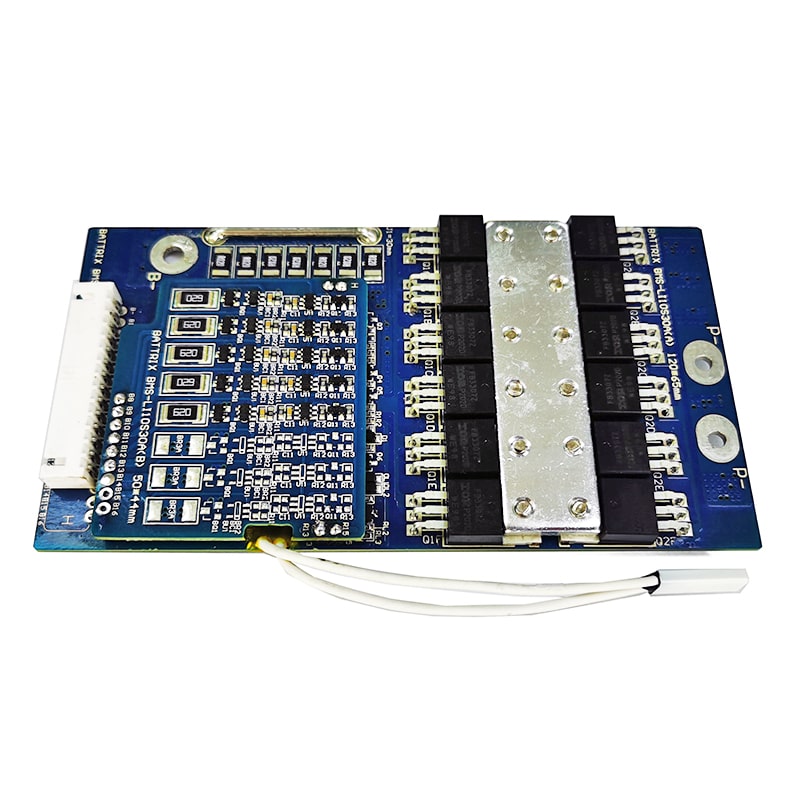

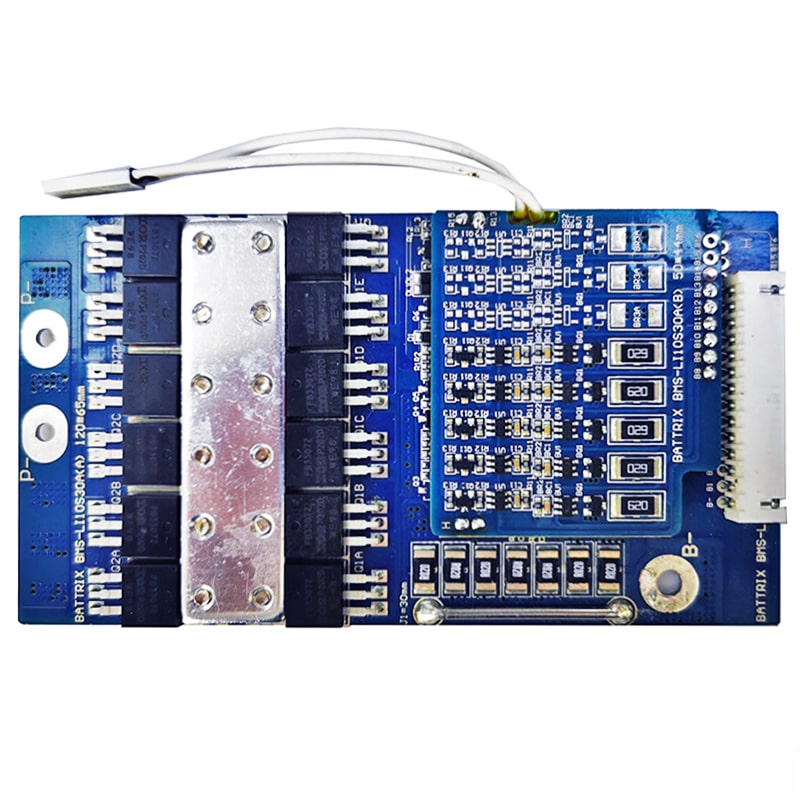

5s-16s 24V/36V/48V/60V 30a BMS para 57.6V 59.2V Li-ion/Litio/Li-Polymer 48V 51.2V LiFePO4 Tamaño del paquete de batería L120 * W65 * T12mm

Model No:PCM-L16S30-922
Working current:30a(Max)
Size:L120*W65*T12mm
Balance:YES
Estado de Disponibilidad:
Cantidad:
  • PCM-L16S30-922

  • QUAWINTEC/OEM

  • 8507909000

  • Shenzhen, China

  • LC, T/T, D/P, Western Union, Paypal, Pago de Pequeña Cantidad

  • caja blanca/bolsas de plástico/a su pedido paquete exterior: cartón

  • 100PCS

  • 500000/mes

Technical parameter


Product name:Protection Circuit Module
Model No:PCM-L16S30-922
For 5~16S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs

Product Feature:
1. Suitable for 5-16 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 30a, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. Temperature switch detects battery temperature and controls discharge MOSFE;

Items Specifications
Lithium-ion/Lithium Polymer LiFePO4
Charge Charging voltage(CC/CV)-5S CC/CV:21V CC/CV:18V
Charging voltage(CC/CV)-16S CC/CV:67.2V CC/CV:57.6V
Maximal continuous charging current 30a(Max)
Discharge Maximal continuous discharging current 30a(Max)
Low current consumption Current consumption on operation <20μA
Current consumption at power down <0.1μA
Cell-balance Cell-balance detection voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance release voltage 4.20 ± 0.03 V 3.60 ± 0.03 V
Cell-balance current 68 ±3mA 58 ±3mA
Over-charge Overcharge detection voltage 4.25±0.025V 3.900 ± 0.025V
Overcharge release voltage 4.15±0.05V 3.800 ± 0.050V
Overcharge delay time 0.5~2S
Over-discharge Overdischarge detection voltage 2.50±0.062V 2.00±0.080V
Overdischarge release voltage 3.0±0.075V 2.30±0.100V
Overdischarge delay time 100~250mS
Discharge overcurrent Discharge overcurrent detection voltage 0.2±0.015V 0.10±0.015V
Discharge overcurrent delay time 15~35ms
Discharge overcurrent protection 80±10a(can adjust)
Release condition Cut-off-load
Short-circuiting protection Load short-circuiting detection voltage / /
Detection condition Exterior short circuit
Load short-circuiting detection delay time 200~800μs
Release condition Cut-off-load
Internal resistance Static Drain-Source On-Resistance <40mΩ(B- to P-)
Temperature Wide range of operation temperature 40 ~ + 85ºC
Storage Temperature Range -40 ~ +125ºC
Dimension L120*W65*T12mm

922-1922-2922-3PACK-L16S30-9225s-16s 30A PCM BMS for 57.6V 59.2V Li-ion/Lithium/ Li-Polymer 48V 51.2V LiFePO4 Battery Pack Size L120*W65*T12mm (PCM-L16S30-922)5s-16s 30A PCM BMS for 57.6V 59.2V Li-ion/Lithium/ Li-Polymer 48V 51.2V LiFePO4 Battery Pack Size L120*W65*T12mm (PCM-L16S30-922)5s-16s 30A PCM BMS for 57.6V 59.2V Li-ion/Lithium/ Li-Polymer 48V 51.2V LiFePO4 Battery Pack Size L120*W65*T12mm (PCM-L16S30-922)5s-16s 30A PCM BMS for 57.6V 59.2V Li-ion/Lithium/ Li-Polymer 48V 51.2V LiFePO4 Battery Pack Size L120*W65*T12mm (PCM-L16S30-922)5s-16s 30A PCM BMS for 57.6V 59.2V Li-ion/Lithium/ Li-Polymer 48V 51.2V LiFePO4 Battery Pack Size L120*W65*T12mm (PCM-L16S30-922)
